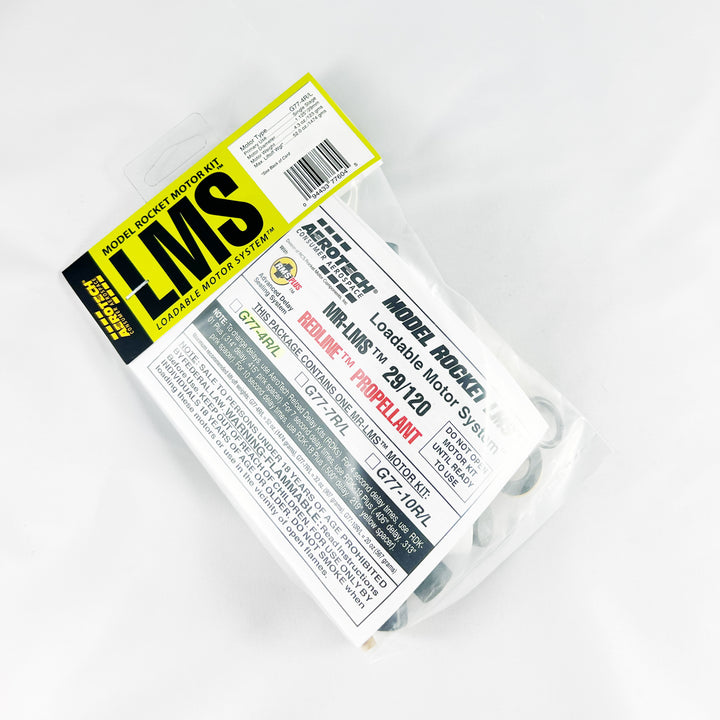

AeroTech G77-4R/L 29mm x 124mm Single Use LMS 1-Motor Kit – 77604

The AeroTech Loadable Motor System LMS is a single-use motor in kit form that is assembled by the user. All of the Aerotech LMS motors use all-disposable components. You will need 5-minute epoxy glue to assemble this motor, which is not included. This LMS motor utilizes a patent pending high-strength polymer case and bulkhead, polymer nozzle and RCSs exclusive Redline™ aerospace grade composite propellant formulation, which produces a visible scarlet flame. Redline™ motors burning rate lies midway between that of White Lightning™ and Blue Thunder™. Photos don’t do justice to the “laser-beam” intensity and color of Redline™…. you have to see it to appreciate it!

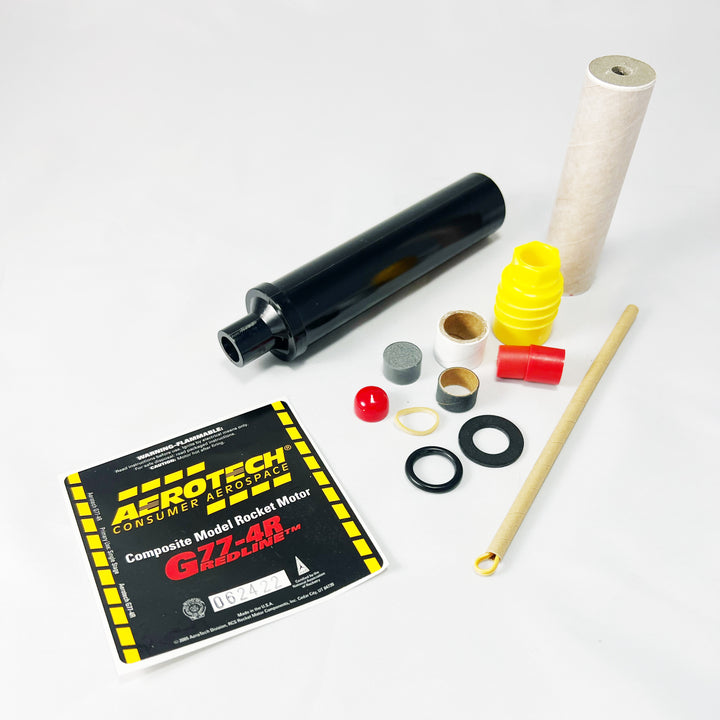

This AeroTech motor pack comes with 1 rocket motor and 1 FirstFire™ Jr. Initiator. This AeroTech motor is U.S. mailable with no hazmat fee! The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) is received.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

• Specifications:

  Motor Diameter: 1.125 inches (29mm)

  Casing Length: 4.875 inches (124mm)

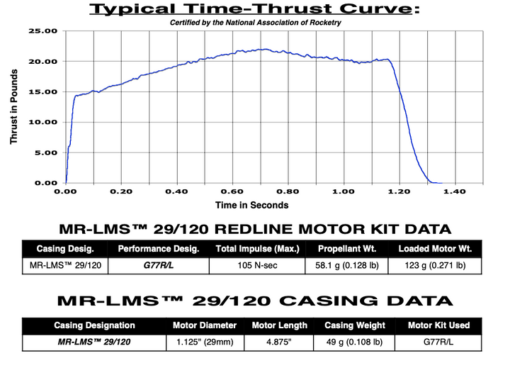

  Total Impulse: 103 N-sec

  Average Thrust: 80.1 newtons

  Peak Thrust: 100.5 N-sec

  Thrust Duration: 1.28 seconds

  Delay Time: 4 seconds

  Propellant Weight: 59.1 grams

  Motor Weight: 122 grams

  Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
