AeroTech M2225WS-PS RMS-75/5120 Reload Kit (1 Pack) – 13222P
$405.99
The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-75/5120 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a stainless steel forward seal disc (75FSDSS) during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products.
The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-75/5120 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a stainless steel forward seal disc (75FSDSS) during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products.
The M225WS-PS uses AeroTech’s high-performance Super White Lightning propellant formulation producing the brightest possible white flame and brilliant exhaust plume at lift-off, plus a higher “specific impulse” or Isp and higher thrust level than our standard White LightningTM propellant. This new motor delivers an impressive 5,205 N-Sec. (1,170.2 lb.-Sec.) of total Impulse, with a burn time of 2.32 seconds and a peak thrust of 2,418 N (543.6 lbs.). The reload kit propellant weight is 2,331 g (5.13 lbs.) with an all-up motor system weight of 4,685 g (10.32 lbs.). This Super White Lightning rocket motor produces lots of bright white smoke and a real throaty roar at lift-off, plus tracking smoke, however it is a “plugged” motor that does not include an ejection charge, requiring the utilization of an electronically-activated recovery system. The M2225WS-PS rocket motor is perfect for Level 3 certification attempts or extreme high performance flights.
The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators. Requires HAZMAT shipping via UPS or FEDEX. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 3 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 3 certification is received.
Certified by the Tripoli Rocketry Association (TRA).
-

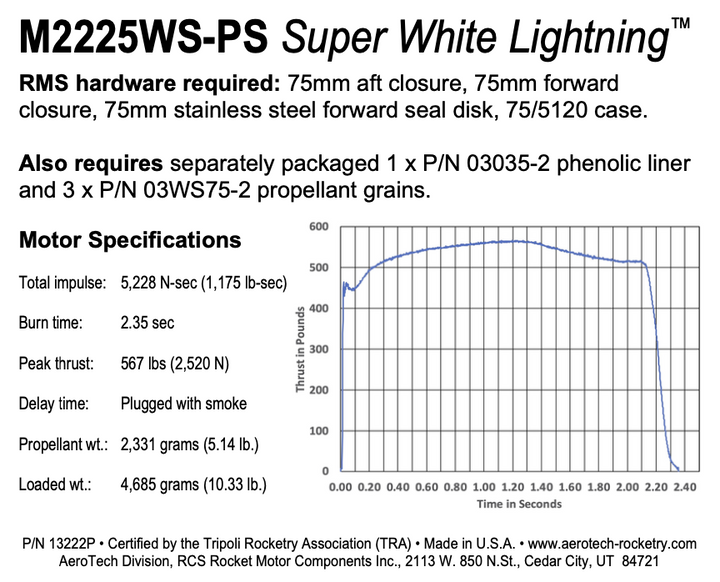

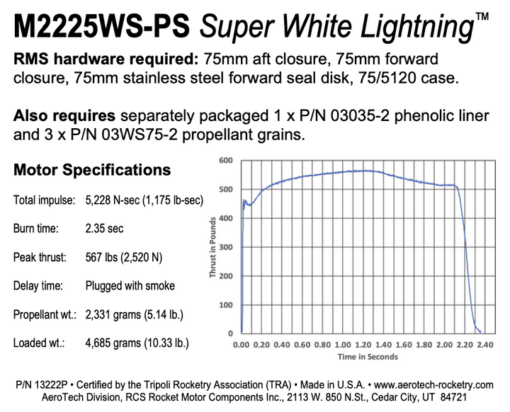

Specifications:
Motor Diameter: 2.965 inches (75mm)
Casing Length: 26.8 inches (681mm)
Hardware Required: RMS-75/5120
Total Impulse: 5205 N-sec
Peak Thrust: 2418 N
Thrust Duration: 2.32 seconds
Delay Time: Plugged with Smoke
Propellant Weight: 2331 grams
Motor Weight: 4685 grams
Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
