AeroTech J1299N-P RMS-54/852 Reload Kit (1 Pack) – 10129P

he AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-54/852 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. Important: High Power RMS reload kits are not compatible with Mid Power RMS products.

The J1299N-P is a Plugged motor reload. Plugged reload kits do not utilize a motor-actuated delay or ejection charge. Plugged motors must be used in conjunction with a timer, altimeter or radio-activated recovery system.

This RMS motor reload utilizes RCSs exclusive Warp-9™ aerospace grade composite propellant formulation, which produces a prominent yellow-orange flame studded with “mach diamonds.” Warp-9 is AeroTech’s fastest burning propellant. Originally developed for Orbital’s Pegasus® fin motors, Warp-9 is perfect when you need the highest thrust possible from a given motor size.

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators. Requires HAZMAT shipping via UPS or FEDEX. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 2 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 2 certification is received.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

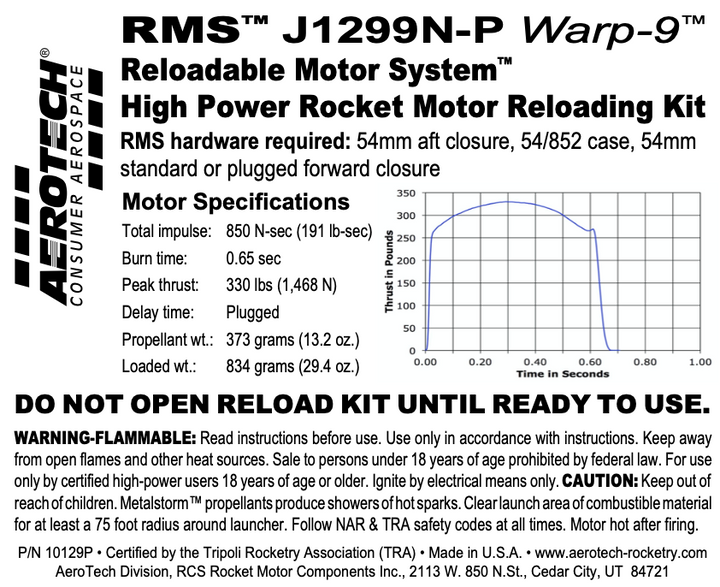

• Specifications:

  Motor Diameter: 2.125 inches (54mm)

  Casing Length: 9.56 inches (243mm)

  Hardware Required: RMS-54/852

  Total Impulse: 843.4 N-sec

  Average Thrust: 1291.6 newtons

  Peak Thrust: 1468.3 N-sec

  Thrust Duration: 0.7 seconds

  Delay Time: Plugged

  Propellant Weight: 372 grams

  Motor Weight: 843 grams

  Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
