AeroTech I117FJ-14A RMS-54/426 Reload Kit (1 Pack) – 0911714

The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-54/426 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a 54mm small nozzle aft closure (54ACCSN) during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products. You will need to set the desired delay time using the 54mm Delay Drilling Tool (54RDDT), Not Included. The 54mm Delay Drilling Tool(54RDDT) is available in the AeroTech Accessories section of this website.

This RMS motor reload utilizes RCSs exclusive Black Max™ aerospace grade composite propellant formulation, which produces a visible black exhaust plume and a denser dark tracking smoke. Black Max™ motors provide a higher level of thrust than White Lightning™ motors of the same total impulse and are perfect for high lift-off acceleration.

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators. Requires HAZMAT shipping via UPS or FEDEX. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 1 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 1 certification is received.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

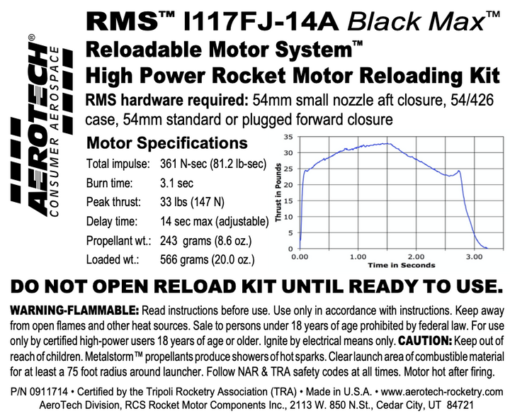

• Specifications:

  Motor Diameter: 2.125 inches (54mm)

  Casing Length: 6.14 inches (156mm)

  Hardware Required: RMS-54/426

  Total Impulse: 361 N-sec

  Average Thrust: 117 newtons

  Peak Thrust: 164.7 N-sec

  Thrust Duration: 3.1 seconds

  Delay Time: adjustable up to 14 seconds

  Propellant Weight: 243 grams

  Motor Weight: 566 grams

  Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
